Renesas RX Microcontroller

Overview

This is a program by Renesas RX microcontroller and its compiler rx-elf-gcc, g++.
I am currently using Renesas GNU-RX gcc 8.3.0 as my main development tool.
GNU-RX supports RXv3 and DFPU, and has excellent optimization.

Currently, a dedicated writing program has been implemented that has been tested on Windows, OS-X, and Linux.
Development is now possible in multiple environments.

Currently supported and tested devices:

Series	MinV	MaxV	MHz	Core	FPU	TFU	DFPU	Operation check	rx_prog	Linker file
RX110	1.8	3.6	32	RXv1	－	－	－			R5F51103/4/5
RX111	1.8	3.6	32	RXv1	－	－	－			R5F51115/6/7
RX113	1.8	3.6	32	RXv1	－	－	－			R5F51136/8
RX130	1.8	5.5	32	RXv1	－	－	－			R5F51305/6
RX140	1.8	5.5	48	RXv2	Yes	－	－	〇	〇	R5F51403/5/6
RX13T	2.7	5.5	32	RXv1	Yes	－	－			R5F513T3/5
RX220	1.62	5.5	32	RXv1	－	－	－	〇	〇	R5F52206
RX231	1.8	5.5	54	RXv2	Yes	－	－	〇	〇	R5F52316/7/8
RX23T	2.7	5.5	40	RXv2	Yes	－	－			R5F523T5
RX24T	2.7	5.5	80	RXv2	Yes	－	－	〇	〇	R5F524T8/A
RX24U	2.7	5.5	80	RXv2	Yes	－	－			R5F524UB/E
RX261	1.6	5.5	64	RXv3	Yes	ー	ー			R5F52618
RX26T	2.7	5.5	120	RXv3	Yes	V2	ー	〇	〇	R5F526TF
RX621	2.7	3.6	100	RXv1	Yes	－	－	〇	〇	R5F56218
RX62N	2.7	3.6	100	RXv1	Yes	－	－	〇	〇	R5F562N7/8
RX631	2.7	3.6	100	RXv1	Yes	－	－	〇	〇	R5F5631F
RX63N	2.7	3.6	100	RXv1	Yes	－	－	〇	〇	R5F563NE
RX63T	3.3	5	100	RXv1	Yes	－	－	〇	〇	R5F563T6
RX64M	2.7	3.6	120	RXv2	Yes	－	－	〇	〇	R5F564MF/G/J/L
RX71M	2.7	3.6	240	RXv2	Yes	－	－	〇	〇	R5F571MF/G/J/L
RX651	2.7	3.6	120	RXv2	Yes	－	－	〇	〇	R5F5651E
RX65N	2.7	3.6	120	RXv2	Yes	－	－	〇	〇	R5F565NE
RX66N	2.7	3.6	120	RXv3	Yes	V1	－			R5F566ND/N
RX660	2.7	5.5	120	RXv3	Yes	－	－			R5F56609
RX671	2.7	5.5	120	RXv3	Yes	－	－			R5F5671C/E
RX72N	2.7	3.6	240	RXv3	Yes	V1	Yes	〇	△	R5F572ND/N
RX72M	2.7	3.6	240	RXv3	Yes	V1	Yes	△	△	R5F572MD/N
RX66T	2.7	5.5	160	RXv3	Yes	－	－	〇	〇	R5F566TA/E/F/K
RX72T	2.7	5.5	200	RXv3	Yes	V1	－	〇	〇	R5F572TF/K

The directory structure is updated daily.
Some features are still under construction.
The project consists of a Makefile and related headers and source code, and includes dedicated startup routines and linker scripts.

Please make a request if you want us to support other RX devices. (Conditions below)

Become a support member of hirakuni45 GitHub.
Lend us a board with the RX microcontroller you are requesting support for.
You agree to release newly added files related to the RX microcontroller under the MIT license.

**If you do not know how to use the framework

Create a GitHub account and post in Discussions.
You can also become a support member to get extensive support.

If you have a problem with the framework or need a fix, please create a Github account and post a note in Discussions.

Create a Github account and post in Issues.
If you have a modification request, post it in Discussions.
If you have a pull request, please write the contents in Issues and Discussions in advance.

Space Invaders Emulator, NES Emulator, for RX65N/RX72N Envision kit

WAV/MP3 Audio Player, File selector, for RX65N/RX72N Envision kit

functional calculator, DX7 Emulator

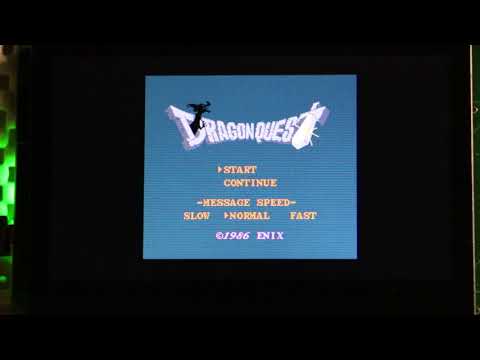

YouTube: NES Emulator for RX65N Envision kit

Device control classes with template design patterns provide flexible and concise functionality.
Due to its functionality, it does not require difficult or complicated settings or code generation by separate programs.

// LED flashing program
#include "common/renesas.hpp"

namespace {
//  typedef device::PORT<device::PORT0, device::bitpos::B7> LED;  // LED connection port, Active HIGH
    typedef device::PORT<device::PORT0, device::bitpos::B7, false> LED;  // LED connection port, Active LOW
}

int main(int argc, char** argv);

int main(int argc, char** argv)
{
    SYSTEM_IO::boost_master_clock();

    LED::OUTPUT();
    while(1) {
        utils::delay::milli_second(250);
        LED::P = 1;
        utils::delay::milli_second(250);
        LED::P = 0;
    }
}

In order to complete the process from dependency rule generation to compilation and linking, usually with a single "make" command, I do not need it.
No need for a dedicated boot program or loader I can write and execute.
For development, we recommend using "Visual Studio Code" that can be used on multiple platforms.

RX Project, Library List

For device I/O operations, dedicated headers are provided utilizing template class libraries implemented in C++.
We also provide a full set of utilities and class libraries.

directory	contents
all_project_build.sh	build all projects (shell script)
/RX110	RX110 specific device definition class, linker script
/RX111	RX111 specific device definition class, linker script
/RX130	RX130 specific device definition class, linker script
/RX13T	RX13T specific device definition class, linker script
/RX140	RX140 specific device definition class, linker script
/RX220	RX220 specific device definition class, linker script
/RX231	RX231 specific device definition class, linker script
/RX23T	RX23T specific device definition class, linker script
/RX24T	RX24T specific device definition class, linker script
/RX24U	RX24U specific device definition class, linker script
/RX26x	RX260/RX261 specific device definition class, linker script
/RX26T	RX26T specific device definition class, linker script
/RX62x	RX621/RX62N dedicated device definition class, linker script
/RX63x	RX631/RX63N specific device definition class, linker script
/RX63T	RX63T specific device definition class, linker script
/RX64M	RX64M dedicated device definition class, linker script
/RX65x	RX651/RX65N specific device definition class, linker script
/RX660	RX660 specific device definition class, linker script
/RX66N	RX66N specific device definition class, linker script
/RX66T	RX66T dedicated device definition class, linker script
/RX671	RX671 specific device definition class, linker script
/RX71M	RX71M dedicated device definition class, linker script
/RX72N	RX72N dedicated device definition class, linker script
/RX72M	RX72M dedicated device definition class, linker script
/RX72T	RX72T dedicated device definition class, linker script
/RX600	RX microcontroller common device definition class
/common	shared classes, headers, etc.
/rxlib	zlib, png, mad, gmp, mpfr libraries
/FreeRTOS	FreeRTOS for various RX microcontrollers and simple samples
/ff14	ChaN's fatfs source code and handler for RX microcontrollers
/chip	various device specific control driver libraries such as I2C, SPI, etc
/graphics	Graphics drawing related classes
/gui	Graphics user interface related classes (GUI Widget)
/sound	sound and audio related classes
/usb	USB handler, manage class
/tinyusb	TinyUSB source code
/rxprog	RX microcontroller, Flash program writing tool (for Windows, OS-X, Linux)
LICENSE	license description file

Sample Projects (Applications)

Directory	RX220	RX631	RX63T	RX62N	RX24T	RX66T	RX72T	RX64M	RX71M	RX65N	RX72N	Contents
/FIRST_sample	〇	〇	〇	〇	〇	〇	〇	〇	〇	〇	〇	LED blinking Sample Program
/SCI_sample	〇	〇	〇	〇	〇	〇	〇	〇	〇	〇	〇	serial communication Sample Program
/MTU_sample	－	－	－	〇	〇	〇	〇	〇	〇	〇	〇	Multi-Function Timer Pulse Unit Sample Program
/CAN_sample	－	〇	－	〇	－	〇	〇	〇	〇	△	〇	CAN Communication Sample Program
/FLASH_sample	－	－	－	－	〇	〇	〇	〇	〇	〇	〇	Internal data flash operation sample
/FreeRTOS	〇	〇	－	〇	〇	〇	〇	〇	〇	〇	〇	FreeRTOS Basic operation sample
/GPTW_sample	－	－	－	－	△	〇	〇	－	－	△	〇	GPTW PWM Sample Program
/I2C_sample	〇	〇	－	〇	〇	〇	〇	〇	〇	〇	〇	I2C Device Access Sample
/RAYTRACER_sample	－	〇	－	〇	〇	〇	〇	〇	〇	〇	〇	Ray Tracing Benchmark
/SDCARD_sample	－	－	－	－	〇	〇	〇	〇	△	〇	〇	SD Card Operation Sample
/SIDE_sample	－	－	－	－	－	－	－	－	－	〇	〇	Envision Kit, Space Invaders emulator
/NESEMU_sample	－	－	－	－	－	－	－	－	－	〇	〇	Envision Kit, NES emulator
/GUI_sample	－	－	－	－	－	－	－	－	－	〇	〇	GUI Sample、Graphics User Interface (Soft rendering, using DRW2D engine)
/AUDIO_sample	－	－	－	－	－	－	－	〇	△	〇	〇	MP3/WAV Audio Player (FreeRTOS)
/SYNTH_sample	－	－	－	－	〇	〇	〇	〇	〇	〇	〇	FM sound synthesizer emulator
/CALC_sample	－	〇	－	〇	－	〇	〇	〇	〇	〇	〇	Function calculator samples (gmp, mpfr libraries)
/DSOS_sample	－	－	－	－	－	－	－	－	－	△	〇	Digital Storage Oscilloscope Samples
/PSG_sample	－	〇	－	〇	－	〇	〇	〇	〇	〇	〇	Pseudo PSG Sound Source Performance Samples
/TUSB_HOST_sample	－	－	－	－	－	－	－	－	－	〇	〇	TinyUSB/Host Samples

*Please consider directories and files that are not in the above list but exist when checked out as work in progress.

rxlib directory

Open source libraries built for RX microcontrollers

rxlib See also

common directory

Various utilities
Convenience Classes
Common files for each microcontrollers

common See also

chip directory

Template driver classes for various IC manufacturers (I2C, SPI, and various other interfaces)
In C++, the use of templates can be used to generalize operations using interfaces such as I2C and SPI.
The headers in the chip directory are dedicated to the initialization and control of each IC and are not concerned with the interface definition.
The context of the interface (control pins) is given by reference.
Since there is no definition of interfaces, the creation is very versatile and highly flexible.

chip See also

graphics directory

Classes related to screen rendering

graphics See also

gui directory

GUI Widget Classes

gui See also

sound directory

Classes related to sound

sound See also

ff14 directory

Mr. ChaN's FatFs source code set
MMC Driver Class (SPI)
If SDHI interface is available, real mode driver can also be selected.

ff14 See also

KiCAD directory

For KiCAD, parts files, etc.

KiCAD_lib See also

legacy directory

Files not currently supported, etc.

legacy See also

Installation and features of Renesas GNU-RX

The former KPIT support for the GNU toolchain has been replaced by Open Source Tools for Renesas has added a new GNU tools.

As the latest (as of July 2020) GNU toolchain for RX microcontrollers,

binutils-2.24
gcc-8.3.0
newlib-3.1.0
gdb-7.8.2

You can download a toolchain for RX microcontrollers based on the above files.

The tool can be downloaded by anyone who registers, and there is no binary limit.
It also seems to have optimizations in RX microcomputers and support for the latest cores.
Since gcc is based on 8.3.0, it supports C++17.
It has deeper optimizations than normal gcc and supports the latest CPU cores.
All projects using the C++ framework published here are compileable.

They are also providing support.（CyberTHOR Studios Limited）

To use this tool from MSYS2, set the command path to ".bash_profile" after installing the toolchain.
When compiling open source libraries, etc., there is a problem with path strings containing "spaces" or 2-byte codes.
To avoid this problem, it is recommended to copy the directory to "/usr/local" and use that path.

# rx-elf path
# PATH=$PATH:/usr/local/rx-elf/bin
PATH=$PATH:/C/'Program Files (x86)'/'GCC for Renesas RX 8.3.0.202002-GNURX-ELF'/rx-elf/rx-elf/bin

Features in Renesas GNU-RX 8.3.0：

RXv3 Core Support
Generation of double-precision floating-point instructions
RX72N Built-in trigonometric function unit (TFU) support

The difference between CC-RX:
In terms of compiler optimization, CC-RX seems to be superior to GNU-RX in the CoreMark benchmark.
It's hard to imagine why such a big difference would occur, but if you know the internal structure of the CPU, you might be able to achieve it...

Compiler	RX core	CoreMark (MHz)	Rate
CC-RX (V3.02)	RX72N	5.21	1.00
GNU-RX (8.3.x)	RX72N	3.59	0.69

CC-RX (V3.02)	RX65N	4.37	1.00
GNU-RX (8.3.x)	RX65N	3.22	0.74

The above values are quite exciting, but when running actual applications, we do not feel such a big difference in sensory perception.

The big difference seems to occur in the case of applications that use a lot of instructions that require a relatively large number of CPU cycles, such as multiplication and division.
For applications that use a lot of floating point instructions, GNU-RX may be faster.

No matter how good CC-RX is, it's not worth the cost for hobbyists, and if it doesn't support C++11, it's not practical to use.
In addition, the above benchmarks are based on CoreMark, so you need to evaluate it with actual applications to know what it really is.

RX Development environment preparation (Windows、MSYS2)

On Windows, install the MSYS2 environment in advance.
MSYS2 has msys2, mingw32, mingw64 and 3 different environments, but gcc for RX microcontroller Because it is necessary to build of, do with msys2.

MSYS2 is a UNIX-based application development environment.
MINGW32 is an environment for i686 that the exception model of gcc is not war related to SEH because of Borland patent.
MINGW64 is an environment for developing Windows-based applications.

If you have installed any software other than Microsoft's anti-virus software, please disable it.

The GCC build may take an unusually long time or may fail to build.

MSYS2 upgrade

   pacman -Sy pacman
   pacman -Syu

Open the console again. (You should see a message as you reopen the console)

   pacman -Su

The update is done multiple times, then follow the instructions on the console.
You need to reopen the console several times.
Install gcc, texinfo, gmp, mpfr, mpc, diffutils, automake, zlib, tar, make, unzip, git commands etc

   pacman -S gcc
   pacman -S texinfo
   pacman -S mpc-devel
   pacman -S diffutils
   pacman -S automake
   pacman -S zlib
   pacman -S tar
   pacman -S make
   pacman -S unzip
   pacman -S zlib-devel
   pacman -S git

RX Development environment preparation (OS-X)

In OS-X, install macports in advance.
brew is not recommended because it has less flexibility
Depending on the version of OS-X, you may need to install X-Code, Command Line Tools, etc. in advance
macports upgrade

   sudo port -d self update

As you probably know, in the early stage of OS-X, llvm starts by calling gcc.
However, llvm can not currently build gcc cross compilers.
So, I will install gcc on macports, I will use the 5 series version.

   sudo port install gcc5
   sudo ln -sf /opt/local/bin/gcc-mp-5  /usr/local/bin/gcc
   sudo ln -sf /opt/local/bin/g++-mp-5  /usr/local/bin/g++
   sudo ln -sf /opt/local/bin/g++-mp-5  /usr/local/bin/c++

You may need to reboot.
For now, please check.

   gcc --version

   gcc (MacPorts gcc5 5.4.0_0) 5.4.0
   Copyright (C) 2015 Free Software Foundation, Inc.
   This is free software; see the source for copying conditions.  There is NO
   warranty; not even for MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.

Install texinfo, gmp, mpfr, mpc, diffutils, automake command etc

   sudo port install texinfo
   sudo port install gmp
   sudo port install mpfr
   sudo port install libmpc
   sudo port install diffutils
   sudo port install automake

RX Development environment preparation (Ubuntu)

There are multiple Linux environments, so here we will write the case for the "Ubuntu 16.04 LTS" environment.
Install texinfo, gmp, mpfr, mpc, diffutils, automake command etc

   sudo apt-get install texinfo
   sudo apt-get install libgmp-dev
   sudo apt-get install libmpfr-dev
   sudo apt-get install libmpc-dev
   sudo apt-get install diffutils
   sudo apt-get install automake
   sudo apt-get install zlib1g-dev

RX Development environment construction

The RX compiler (rx-elf-gcc, g++) uses "gcc-7.5.0".
Download "binutils-2.34.tar.gz".
Download "gcc-7.5.0.tar.gz".
Download "newlib-2.4.0.tar.gz".
There are multiple versions of binutils, gcc and newlib, but some combinations
It has been found that ineligible binaries (which have subtle problems with operation) will be built.
This bug occurs when using Renesas network stack (net_T4).
It is not possible to identify the cause why such malfunction occurs.
Here is a list of combinations that we have investigated.

   binutils-2.27, gcc-4.9.4, newlib-2.2.0 ---> OK
   binutils-2.27, gcc-5.5.0, newlib-2.2.0 ---> OK
   binutils-2.27, gcc-5.5.0, newlib-2.4.0 ---> OK
   binutils-2.27, gcc-6.4.0, newlib-2.4.0 ---> OK
   binutils-2.28, gcc-6.4.0, newlib-2.4.0 ---> OK
   binutils-2.30, gcc-6.4.0, newlib-2.4.0 ---> OK (old current)
   binutils-2.30, gcc-6.4.0, newlib-3.0.0 ---> NG
   binutils-2.34, gcc-7.5.0, newlib-2.4.0 ---> OK (new current)

Using the latest gcc seems to be faster code, especially for C++.

build binutils-2.34

   cd
   tar xfvz binutils-2.34.tar.gz
   cd binutils-2.34
   mkdir rx_build
   cd rx_build
   ../configure --target=rx-elf --prefix=/usr/local/rx-elf --disable-nls
   make
   make install     OS-X,Linux: (sudo make install)

Pass PATH to /usr/local/rx-elf/bin (edit .bash_profile and add path)

   PATH=$PATH:/usr/local/rx-elf/bin

Open the console again.

   rx-elf-as --version

Execute the assembler command and check if the path is valid.

Build C compiler

    cd
    tar xfvz gcc-7.5.0.tar.gz
    cd gcc-7.5.0
    mkdir rx_build
	cd rx_build
    ../configure --prefix=/usr/local/rx-elf --target=rx-elf --enable-languages=c --disable-libssp --with-newlib --disable-nls --disable-threads --disable-libgomp --disable-libmudflap --disable-libstdcxx-pch --disable-multilib --enable-lto
    make
    make install     OS-X,Linux: (sudo make install)

Build newlib

    cd
    tar xfvz newlib-2.4.0.tar.gz
	cd newlib-2.4.0
    mkdir rx_build
    cd rx_build
    ../configure --target=rx-elf --prefix=/usr/local/rx-elf
	make
    make install     OS-X: (sudo make install)

In Linux environment, sudo command does not recognize the path of binutils set up locally. "Make install" will fail, so write the following script and execute it.

#!/bin/sh
# file: rx_install.sh

PATH=${PATH}:/usr/local/rx-elf/bin
make install

    sudo rx_install.sh

Build C++ compiler

    cd
    cd gcc-7.5.0
    cd rx_build
    ../configure --prefix=/usr/local/rx-elf --target=rx-elf --enable-languages=c,c++ --disable-libssp --with-newlib --disable-nls --disable-threads --disable-libgomp --disable-libmudflap --disable-libstdcxx-pch --disable-multilib --enable-lto --with-system-zlib
    make
    make install     OS-X,Linux: (sudo make install)

The built compiler collection is listed in the link below. (MSYS2 only)
http://www.rvf-rc45.net/Renesas_GNU_Tools/

Get RX Framework Source Code

    git clone https://github.com/hirakuni45/RX.git

Boost installation used by RX framework

In the past, boost was installed for mingw64 using pacman in the MSYS2 environment.
However, as the version of boost advanced, we found that this boost caused problems.
Therefore, we put the boost archive in the proper location and handle it.
This method is used in the MSYS2 environment.
Since boost uses 1.74.0, please download it in advance (place it in D:³ Download). (boost_1_74_0.tar.gz)

cd /c/
tar xfvz /d/Download/boost_1_74_0.tar.gz

RX Build all projects

    sh all_project_build.sh [clean]

How to write program to RX microcontroller

There are several ways, but the easiest and least expensive way is to use the serial interface It is a method of writing.

However, the writing speed is not very fast.

In case of RX microcontroller with built-in USB interface, you can boot and connect with USB, but the driver Seems to only support the Windows version.

The circumstances around here may be wrong as we have not investigated in detail.

The most common, because not all RX microcontrollers have built-in USB interface We will show you how to write using serial interface.

Writing at the serial interface is reasonably fast but easy and secure, and easy to connect.
The hardware manual describes the connection with the serial port and switching to boot mode. Please refer to it.
Normally, setting MD terminal to L or H allows switching between program and internal ROM execution.
It is also necessary to control the state of the UB terminal.
If you use a USB serial conversion module etc., it is easy to get power.

RXD serial reception
TXD serial transmission
VCC power (5V or 3.3V)
GND power 0V

As 3.3V can only extract a limited current, a regulator is always required.
Details on the connection method, boot mode settings, etc. can be found in the hardware manual for each device.

Construction of flash programmer for RX microcontroller

Currently, flash writing to RX63T, RX24T, RX64M, and RX71M is confirmed.
Since the reset is not controlled, it is necessary to assert the reset signal at the time of writing.
In the current version, only erase, write and compare operations are implemented.
Code protection ID settings and operations are not implemented yet.
In the RX24T and RX63T, the erase operation is ignored because the erase is performed automatically when the connection is established.
Build rxprog in MSYS2 environment.
Copy the built executable file to "/usr/local/bin".
Pass the PATH to /usr/local/bin.

    cd rxprog
    make
    make install

Renesas RX Series Programmer Version 0.90b
Copyright (C) 2016,2018 Hiramatsu Kunihito (hira@rvf-rc45.net)
usage:
rx_prog [options] [mot file] ...

Options :
    -P PORT,   --port=PORT     Specify serial port
    -s SPEED,  --speed=SPEED   Specify serial speed
    -d DEVICE, --device=DEVICE Specify device name
    -e, --erase                Perform a device erase to a minimum
    -v, --verify               Perform data verify
    -w, --write                Perform data write
    --progress                 display Progress output
    --device-list              Display device list
    --verbose                  Verbose output
    -h, --help                 Display this

Edit rx_prog.conf and set the COM port to connect and the baud rate.
Ports and baud rates can be set for each of Windows, OS-X and Linux environments.
You can write a standard serial port in "rx_prog.conf", and you should set it according to your environment.
Each project's "Makefile" contains a script that can be written using "make run".

rx_prog.conf:

port_win   = COM12
port_osx   = /dev/tty.usbserial-DA00X2QP
port_linux = /dev/ttyUSB0
speed_win = 230400
speed_osx = 230400
speed_linux = 230400

Development using Renesus RX72N Envision Kit

Programming environment using C++ framework

The following is an example program to communicate with SCI in C++.

The port of SCI is defined by "port_map.hpp", and there is more than one port to select There is no need to make complicated settings if you set "second candidate" or "third candidate".
The baud rate can be set as an integer, and is automatically calculated internally from the set frequency.
Even if you use interrupts, you can use them without polling (polling).
Transmission and reception are performed through a fixed length FIFO class, and the size can be freely defined.
The sci_putch and sci_getch functions are called from POSIX file functions, so they can be linked externally.
The above functions are accessed from stdout, stdin, stderr descriptors, so you can also use the printf function, but for various reasons we do not recommend using "utils :: format", which is the size It is smaller, more flexible, convenient and safe.

#include "common/renesas.hpp"
#include "common/fixed_fifo.hpp"
#include "common/sci_io.hpp"
#include "common/format.hpp"

namespace {
//  Use SCI9
    typedef device::SCI9 SCI_CH;

    typedef utils::fixed_fifo<char, 512> RXB;  // RX (RECV) buffer definition at 512 bytes
    typedef utils::fixed_fifo<char, 256> TXB;  // TX (SEND) buffer definition at 256 buyes

    typedef device::sci_io<SCI_CH, RXB, TXB> SCI;
//    When selecting a second candidate for the SCI port
//    typedef device::sci_io<SCI_CH, RXB, TXB, device::port_map::option::SECOND> SCI;
    SCI     sci_;
}

extern "C" {
    // standard output, called from "syscalls.c"（stdout, stderr）
    void sci_putch(char ch) { sci_.putch(ch); }

    void sci_puts(const char* str) { sci_.puts(str); }

    // standard input, called from "syscalls.c"（stdin）
    char sci_getch(void) { return sci_.getch(); }

    uint16_t sci_length() { return sci_.recv_length(); }
}

int main(int argc, char** argv);

int main(int argc, char** argv)
{
    SYSTEM_IO::boost_master_clock();

    {  // Start SCI
       uint8_t intr = 2;        // Interrupt level
       uint32_t baud = 115200;  // baudrate
       sci_.start(baud, intr);
    }

    //-----
    {  // main、SCI output
       utils::format("Start SCI\n");
    }

    // to loop
    while(1) ;
}

Translated with www.DeepL.com/Translator (free version)

License

MIT

Copyright (c) 2017 2019, Hiramatsu Kunihito
All rights reserved.

Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
* Redistributions of source code must retain the above copyright notice,
  this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice,
  this list of conditions and the following disclaimer in the documentation
  and/or other materials provided with the distribution.
* Neither the name of the <organization> nor the　names of its contributors
  may be used to endorse or promote products derived from this software
  without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND
ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL <COPYRIGHT HOLDER> BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Provide feedback

Saved searches

Use saved searches to filter your results more quickly

Repository files navigation

Renesas RX Microcontroller

Overview

RX Project, Library List

Sample Projects (Applications)

rxlib directory

common directory

chip directory

graphics directory

gui directory

sound directory

ff14 directory

KiCAD directory

legacy directory

Installation and features of Renesas GNU-RX

RX Development environment preparation (Windows、MSYS2)

RX Development environment preparation (OS-X)

RX Development environment preparation (Ubuntu)

RX Development environment construction

build binutils-2.34

Build C compiler

Build newlib

Build C++ compiler

Get RX Framework Source Code

Boost installation used by RX framework

RX Build all projects

How to write program to RX microcontroller

Construction of flash programmer for RX microcontroller

Development using Renesus RX72N Envision Kit

Programming environment using C++ framework

License

About

Releases

Sponsor this project

Packages

Contributors 2

Languages

Name		Name	Last commit message	Last commit date
Latest commit History 6,895 Commits
.github		.github
.vscode		.vscode
ADC_sample		ADC_sample
AUDIO_sample		AUDIO_sample
CALC_sample		CALC_sample
CAN_sample		CAN_sample
CNC_sample		CNC_sample
DAC_sample		DAC_sample
DSOS_sample		DSOS_sample
DSP_sample		DSP_sample
FIRST_sample		FIRST_sample
FLASH_sample		FLASH_sample
FreeRTOS		FreeRTOS
FreeRTOS_FatFs		FreeRTOS_FatFs
FreeRTOS_TCP		FreeRTOS_TCP
GPTW_sample		GPTW_sample
GUI_sample		GUI_sample
I2C_sample		I2C_sample
KiCAD_lib.pretty		KiCAD_lib.pretty
KiCAD_lib		KiCAD_lib
LOGGER_sample		LOGGER_sample
MANDELBROT_sample		MANDELBROT_sample
MTU_sample		MTU_sample
NESEMU_sample		NESEMU_sample
OBD2_sample		OBD2_sample
PSG_sample		PSG_sample
QSPI_sample		QSPI_sample
RAYTRACER_sample		RAYTRACER_sample
RX110		RX110
RX111		RX111
RX113		RX113
RX130		RX130
RX13T		RX13T
RX140		RX140
RX220		RX220
RX231		RX231
RX23T		RX23T
RX23W		RX23W
RX24T		RX24T
RX24U		RX24U
RX26T		RX26T
RX26x		RX26x
RX600		RX600
RX62x		RX62x
RX63T		RX63T
RX63x		RX63x
RX64M		RX64M
RX65x		RX65x
RX660		RX660
RX66N		RX66N
RX66T		RX66T
RX671		RX671
RX71M		RX71M
RX72M		RX72M
RX72N		RX72N
RX72T		RX72T
SCI_sample		SCI_sample
SDCARD_sample		SDCARD_sample
SIDE_sample		SIDE_sample
STEP_TACHO		STEP_TACHO
SYNTH_sample		SYNTH_sample
TGL_sample		TGL_sample
TUSB_HOST_sample		TUSB_HOST_sample
chip		chip
common		common
docs		docs
ff14		ff14
graphics		graphics
gui		gui
legacy		legacy
net		net
net2		net2
r_net		r_net
r_usb		r_usb
rxlib		rxlib
rxprog		rxprog
sound		sound
test		test
tinyusb		tinyusb
usb		usb
.gitattributes		.gitattributes
.gitignore		.gitignore
LICENSE		LICENSE
README.md		README.md
READMEja.md		READMEja.md
all_project_build.sh		all_project_build.sh
doxyfile		doxyfile

License

hirakuni45/RX

Folders and files

Latest commit

History

Repository files navigation

Renesas RX Microcontroller

Overview

RX Project, Library List

Sample Projects (Applications)

rxlib directory

common directory

chip directory

graphics directory

gui directory

sound directory

ff14 directory

KiCAD directory

legacy directory

Installation and features of Renesas GNU-RX

RX Development environment preparation (Windows、MSYS2)

RX Development environment preparation (OS-X)

RX Development environment preparation (Ubuntu)

RX Development environment construction

build binutils-2.34

Build C compiler

Build newlib

Build C++ compiler

Get RX Framework Source Code

Boost installation used by RX framework

RX Build all projects

How to write program to RX microcontroller

Construction of flash programmer for RX microcontroller

Development using Renesus RX72N Envision Kit

Programming environment using C++ framework

License

About

Topics

Resources

License

Stars

Watchers

Forks

Releases

Sponsor this project

Packages 0

Contributors 2

Languages

Packages
